Rack Mounted Products - Low Voltage Model

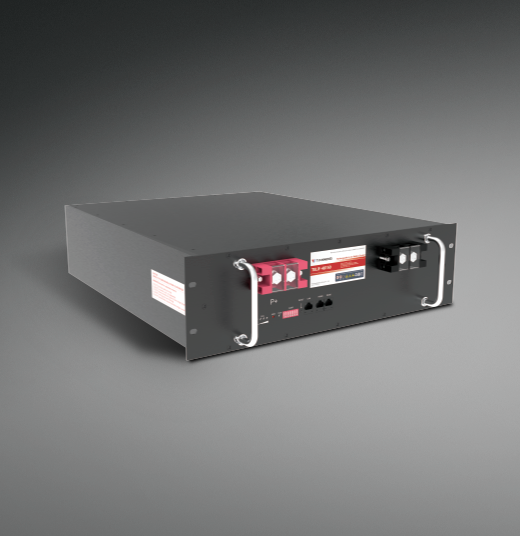

TELiF-48100S3 and TELiF-48150 models
Tianneng provides consumers with a rack-mounted household energy storage system, which uses energy storage to power your home in the event of a power outage, saving users more electricity bills and high product performance, which is very suitable for family use.
Product Feature
Tianneng household energy storage products have excellent performance, and consumers have a good sense of experience.
Premium Safety
LFP cells with BMS monitoring system.
Multiple Application
Capable of High-Powered Emergency-Backup and Off-Grid Function.
Waterproof design
IP65 waterproof design
Longer service life
＞6000 Times Super Cycle Life

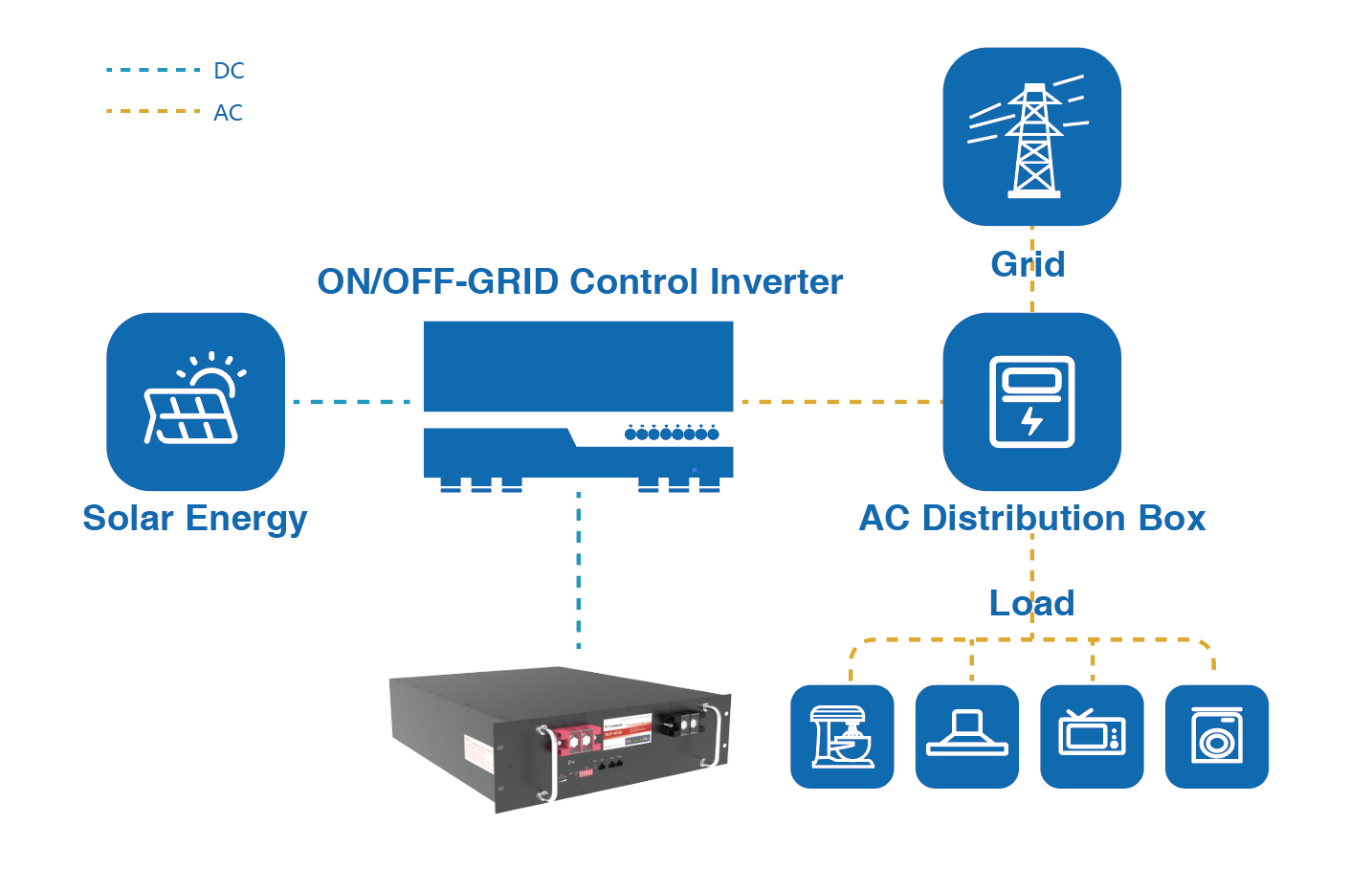

Technical Atlas
Product Specification
| Module | TELiF-48100S3 | TELiF-48150 |
|---|---|---|
| Specification | 51.2V 100Ah | 51.2V 150Ah |
| Battery Energy | 5120 Wh | 7680 Wh |
Nominal Charge/ Discharge Current | 50A | 75A |
| Max Charge/Discharge Current | 100A | 150A |
| Working Voltage | 43.2~56.16Vdc | 43.2~56.16Vdc |
| Dimension (WxDxH) | 440*550*133mm | 456*603*133mm |
| Weight | 43kg | 72kg |
| Installation | Rack mounted/Wall mounted/Cabinet mounted | |
| Scalability | Max 15 batteries in parallel | |
| Communication | RS485、CAN | |
| IP Rating | IP 20 | |
| Charge Temperature | 0°C~55°C | |
| Cell Technology | LiFePO4 | |
| Cycle Life | 6000 @ 80% DOD, 25°C/0.5C | |
