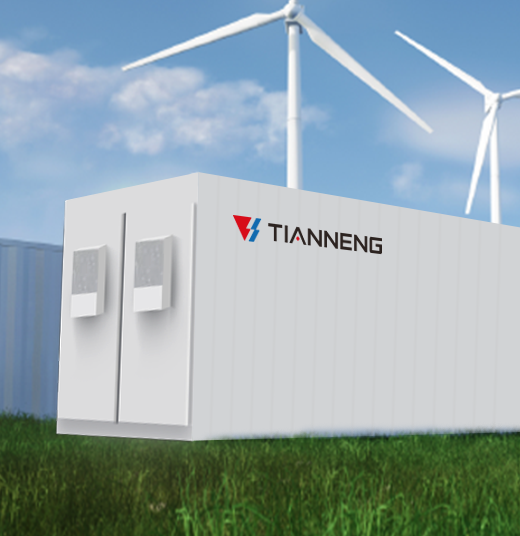

Container BESS

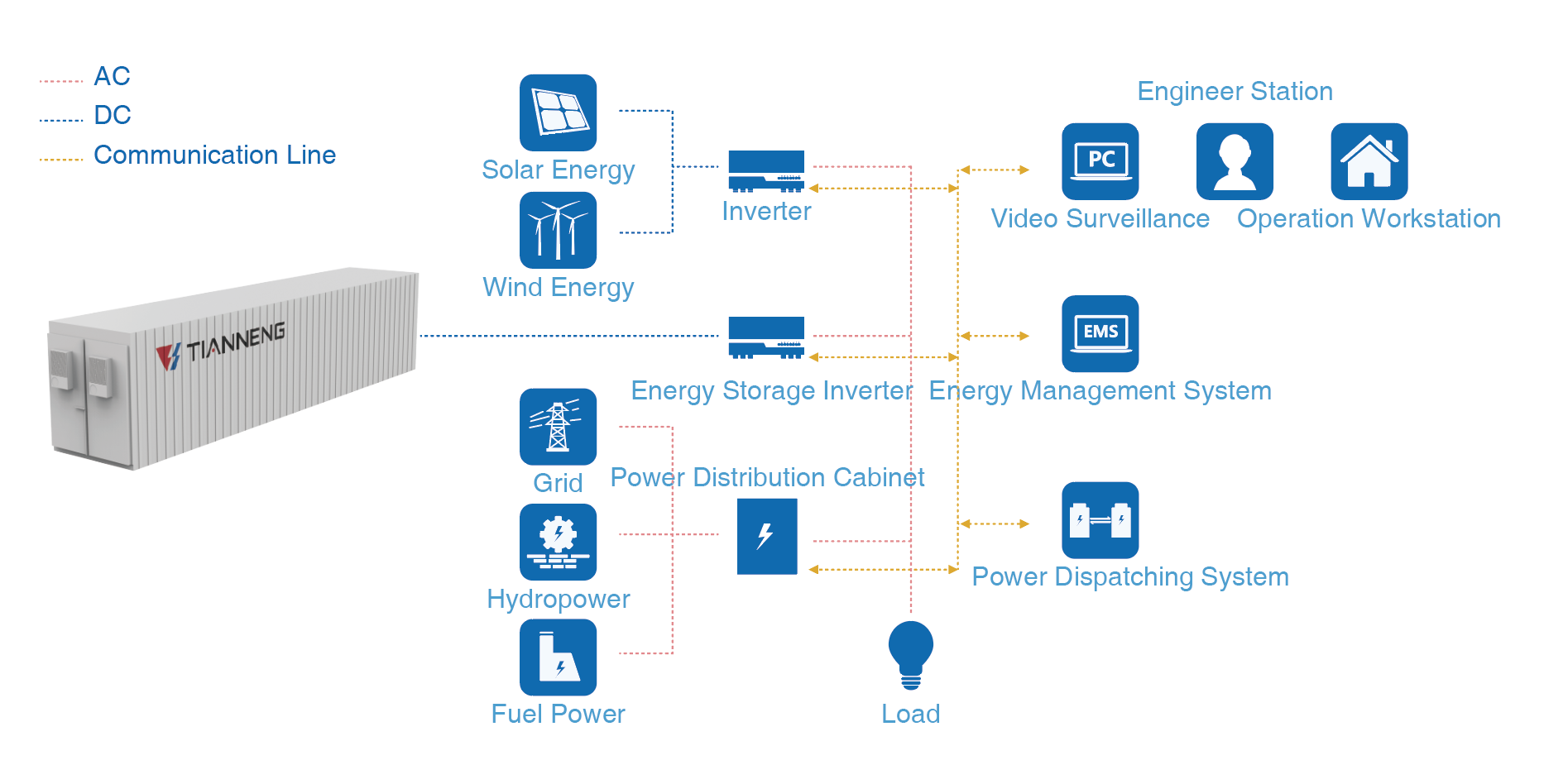

Tianneng Group's smart microgrid energy system solution is suitable for large parks, industrial and mining enterprises, islands, scenic spots and remote areas where the power grid is difficult to extend to solve the problem of power supply.
Product Feature
Tianneng industrial and commercial energy storage products have excellent performance, and users have a good sense of experience.
Premium Safety
LFP cells integrated with intelligent BMS to assure a multilevel safety with dynamic monitoring.
Extended Cycle Life
Extended cycle life of more than 10 years and more than 5000 cycle times.
Flexible Scalability
Standard module and rack enables flexible application from 100kWh to 1MWh.
Better Adaptability
Adapt to high temperature and high altitude applications with excellent environmental tolerance
Technical Atlas
Product Specification
| Module | TTLiF-48100 | TTLiF-48150 | TTLiF-48200 |
|---|---|---|---|
| Specification | 51.2V 100Ah | 51.2V 150Ah | 51.2V 200Ah |
| Battery Energy | 5120 Wh | 7680 Wh | 10240 Wh |
Nominal Charge/ Discharge Current | 50A | 75A | 100A |
Max Charge/ Discharge Curren | 100A | 150A | 200A |
| Working Voltage | 43.2~56.16Vdc | 43.2~56.16Vdc | 43.2~56.6Vdc |
| Dimension (WxDxH) | 440*550*133mm | 456*603*133mm | 445*500*244mm |
| Weight | 43kg | 72kg | Aprox 92kg |
| Installation | Rack mounted/Wall mounted/Cabinet mounted | ||
| Communication | RS485、CAN | ||
| IP Rating | IP 20 | ||
| Operating Temperature | 0°C~55°C | ||
| Cell Technology | LiFePO4 | ||
| Scalabitity | Max 15 batteries in parallel | ||
| Cycle Life | 6000 @ 80% DOD, 25°C/0.5C | ||
