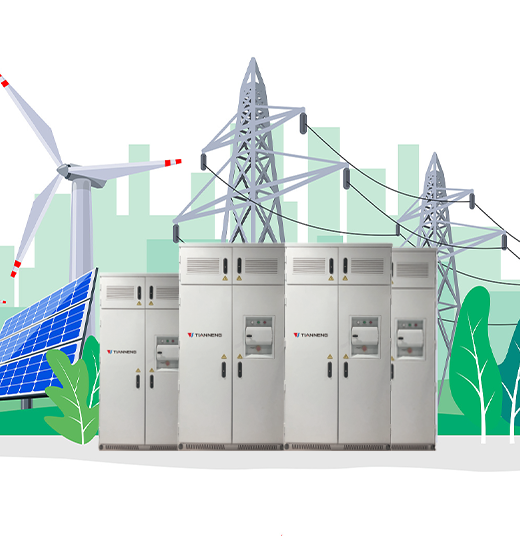

C&I Energy System
Tianneng industrial and commercial energy storage product is to provide backup power for the industrial and commercial field, with high-performance emergency backup and off-grid functions, the product has a long service life, safe and reliable, convenient installation, suitable for residential and commercial applications.
Product Feature
Tianneng industrial and commercial energy storage products have excellent performance, and users have a good sense of experience.
Premium Safety
LFP cells integrated with intelligent BMS to assure a multilevel safety with dynamic monitoring.
Extended Cycle Life
Extended cycle life of more than 10 years and more than 5000 cycle times.
Flexible Scalability
Standard module and rack enables flexible application from 100kWh to 1MWh.
Better Adaptability
Adapt to high temperature and high altitude applications with excellent environmental tolerance

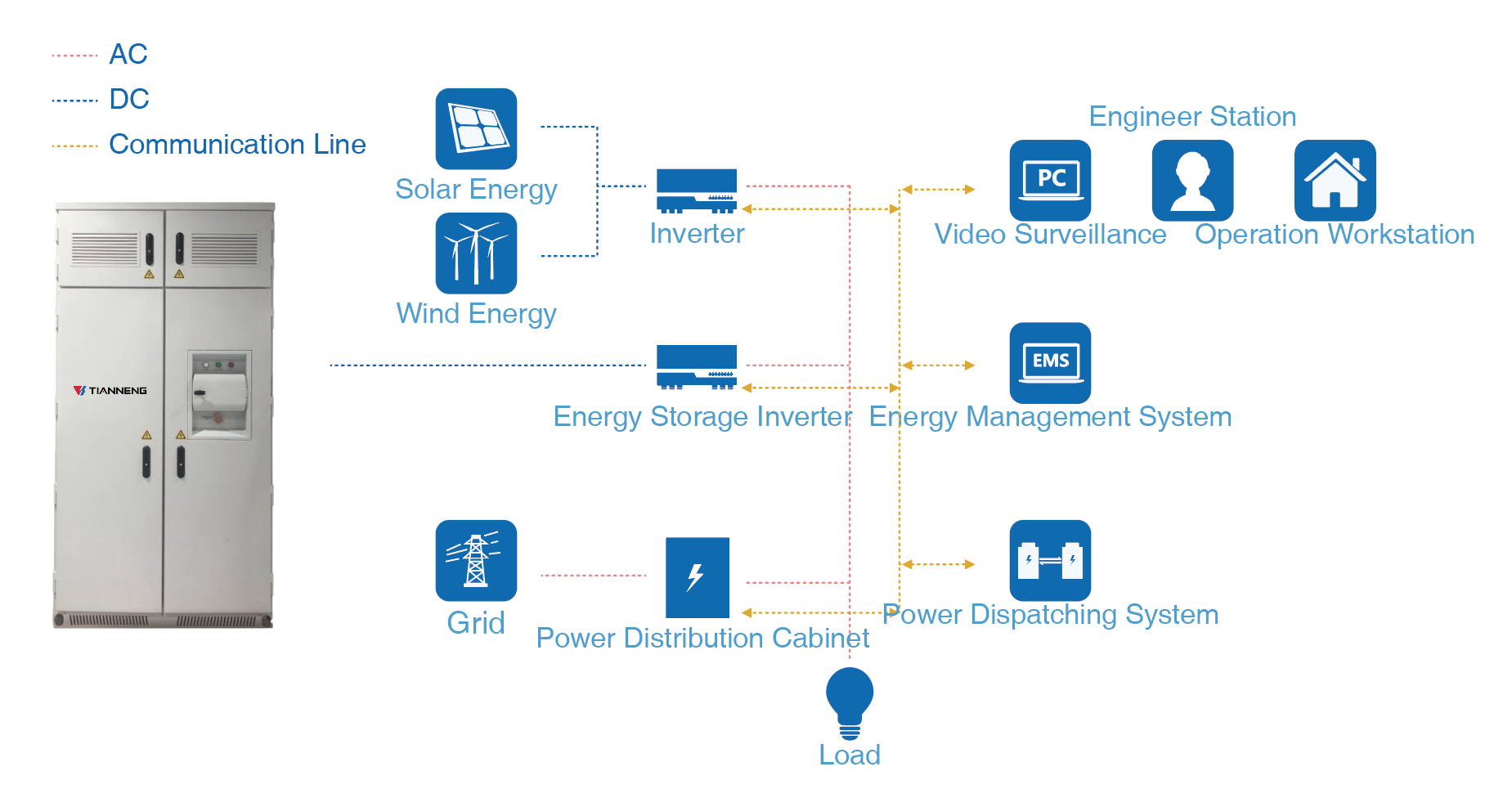

Technical Atlas
Product Specification
| Module | TTLiF-48100 | TTLiF-48150 | TTLiF-48200 |
|---|---|---|---|
| Specification | 51.2V 100Ah | 51.2V 150Ah | 51.2V 200Ah |
| Battery Energy | 5120 Wh | 7680 Wh | 10240 Wh |
Nominal Charge/ Discharge Current | 50A | 75A | 100A |
Max Charge/ Discharge Curren | 100A | 150A | 200A |
| Working Voltage | 43.2~56.16Vdc | 43.2~56.16Vdc | 43.2~56.6Vdc |
| Dimension (WxDxH) | 440*550*133mm | 456*603*133mm | 445*500*244mm |
| Weight | 43kg | 72kg | Aprox 92kg |
| Installation | Rack mounted/Wall mounted/Cabinet mounted | ||
| Communication | RS485、CAN | ||
| IP Rating | IP 20 | ||
| Operating Temperature | 0°C~55°C | ||
| Cell Technology | LiFePO4 | ||
| Scalabitity | Max 15 batteries in parallel | ||
| Cycle Life | 6000 @ 80% DOD, 25°C/0.5C | ||
